LED Light Bar TBD1502

Catalog/TBD1502
Granda Warning Lights LED Light Bar TBD1502 TBD1502
🇨🇳 Granda Warning LightsIn Stock

TBD1502

LED Light Bar TBD1502

1200 mm LED light bar, 23 flash patterns

Specifications

Supply voltage12 or 24 V DC (versions)
LEDs0.5 W each
Light coloramber, red, blue, white; green on request
Flash patterns23
Dimensions (L × W × H)1200 × 300 × 130 mm
Materialslens – plastic; base – aluminum
Ingress protectionIP66
Operating temperature–30 to +70 °C
Weight16 kg (packed)
ManufacturerGranda, Wenzhou (China)

Features

360° signal
23 flash patterns
Two-color versions
IP66 protection

Description

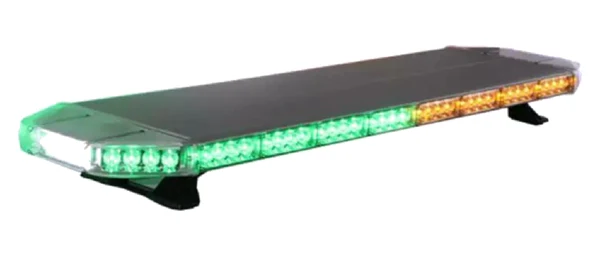

Full-size light bar with a clear cover and rows of LEDs around the whole perimeter; the light color of the sections is chosen for the task – the manufacturer's photo shows a green-amber version. The light source is 0.5 W LEDs; 23 flash patterns allow selecting the required signal. The plastic lens and aluminum base tolerate vibration and bad weather well. 12 or 24 V supply, IP66 protection, operation from –30 to +70 °C. Suitable for police, emergency services, tow trucks and road equipment.

360° signal

LEDs around the whole perimeter: the signal is clearly visible from the front, rear and sides of the vehicle.

23 flash patterns

Single and series flashes, alternating sections – the pattern is chosen for the task and for special-vehicle requirements.

Two-color versions

Two colors can be combined in one bar – for example, red and blue for police or amber and white for road services.

IP66 protection

Modular sealed construction resistant to water, dust and vibration. Works from –30 to +70 °C.
