SGU Smerch 12M-2GD-4 Смерч 12М-2ГД-4

Catalog/Смерч 12М-2ГД-4
ПК ЭЛИНА SGU Smerch 12M-2GD-4 Смерч 12М-2ГД-4
1 / 7
🇷🇺 ПК ЭЛИНАIn Stock

Смерч 12М-2ГД-4

SGU Smerch 12M-2GD-4

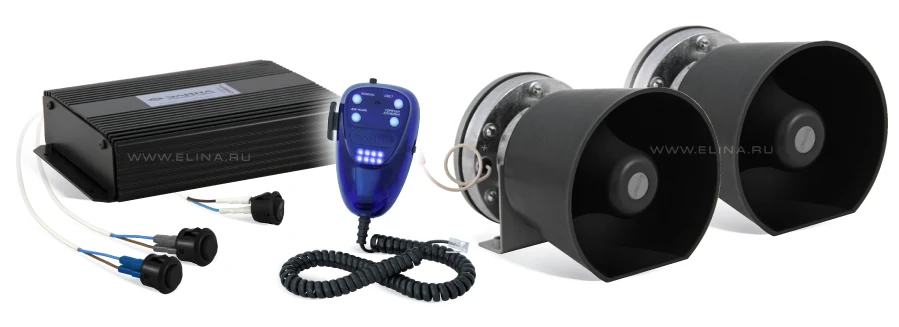

Siren/PA unit with two horn speakers: higher sound pressure, wider coverage

EAC

Specifications

Power unit dimensions232 × 160 × 50 mm
Sound pressure110 to 125 dB
Rated supply voltage12 V or 24 V
Speakers2 horn
Sound modesMANUAL, HI-LO, YELP, AIR-HORN, WAIL
Light modesbasic version – 1; with Forward light bar – up to 7
Control4-button microphone, remote buttons
Hornplastic or silumin
CertificationTR CU 018/2011, UNECE Regulation No. 65, GOST R 50574-2002
ManufacturerPK ELINA, Chelyabinsk (Russia)

Features

Two speakers
Beacon and light bar control
Control from the microphone
Durable speakers

Description

The Smerch siren and public address unit is designed for equipping operational vehicles of police, emergency services, the Russian Ministry of Defence, the Ministry of Health and other agencies. It provides special sound and voice signals. The Smerch unit is certified to Customs Union Technical Regulation TR CU 018/2011 "On the safety of wheeled vehicles", UNECE Regulation No. 65, GOST R 50574-2002 (cl. 6.2, 6.3) and TU 4573-02936904622-2015.

Advantages

●Two speakers deliver higher sound pressure and a wider sound coverage angle.
●Connects and controls flashing beacons or a light bar.
●Fully controlled from the 4-button microphone and remote buttons.
●Long horn speaker life thanks to magnetorheological fluid in the magnetic circuit gap.
●Available with a plastic or silumin horn.

Light modes

Depending on the power unit version supplied, beacons or an LED or halogen light bar can be connected to the Smerch unit. For example, with the Forward light bar up to 7 light modes are available:

●Front only 180°
●Rear only 180°
●Running wave 2 Hz
●Running wave 3 Hz
●Hot key — alternating diagonal sectors 2 Hz
●Alternating 180° front, 180° rear
●Presence effect

The basic power unit version provides 1 light mode for beacons or a halogen light bar.

Sound modes

5 sound modes are available:

●MANUAL (manual siren)
●HI-LO
●YELP
●AIR-HORN
●WAIL

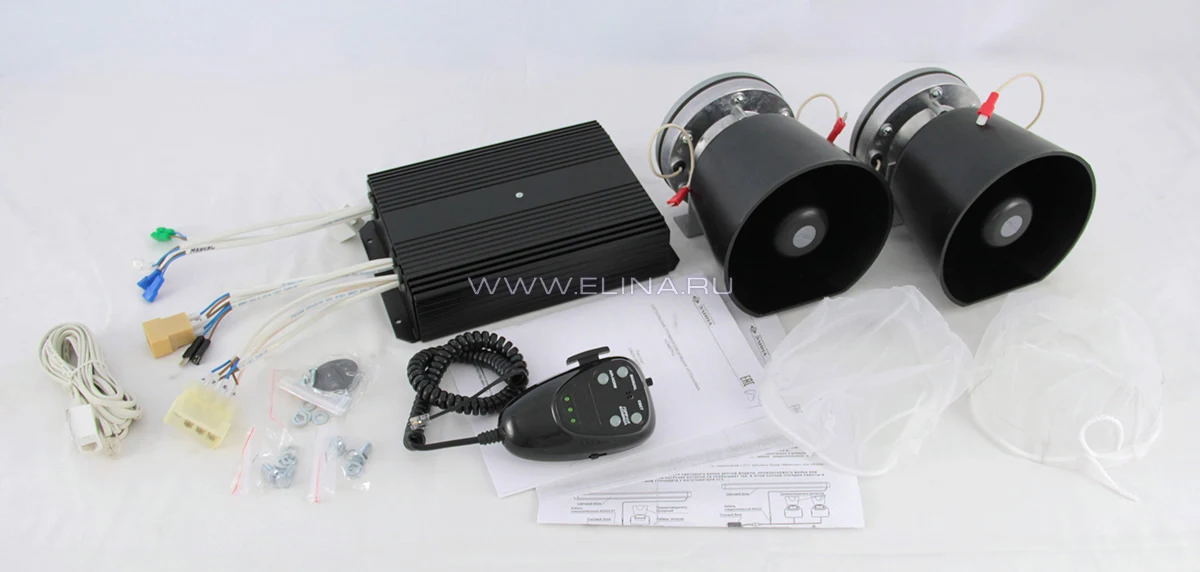

Package contents

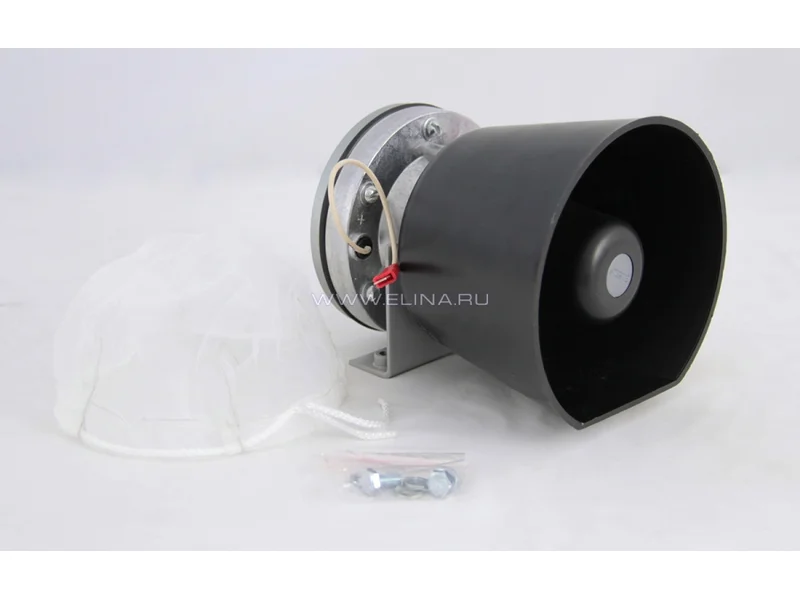

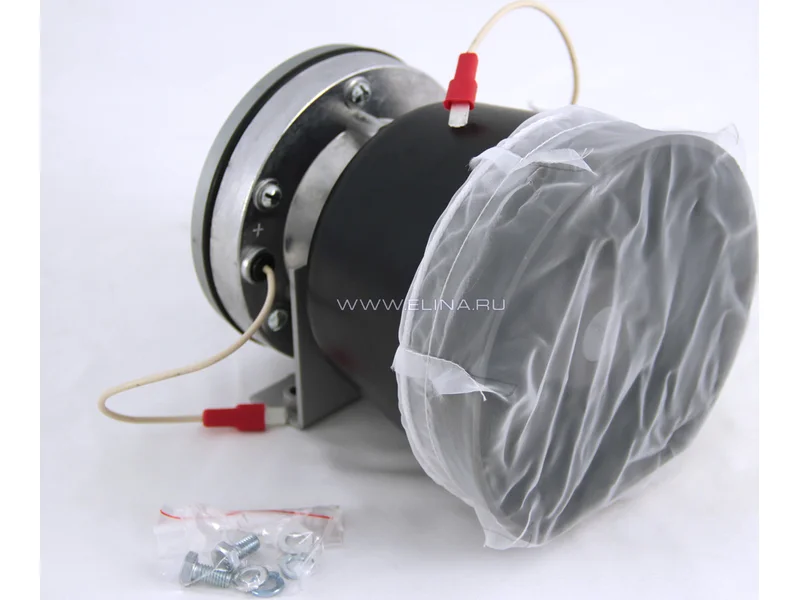

●Horn speaker — 2 pcs
●Power unit — 1 pcs

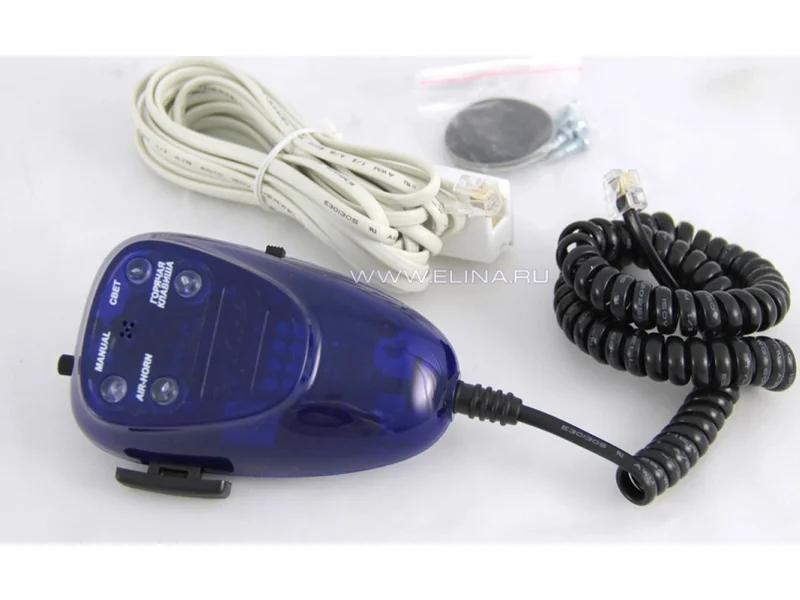

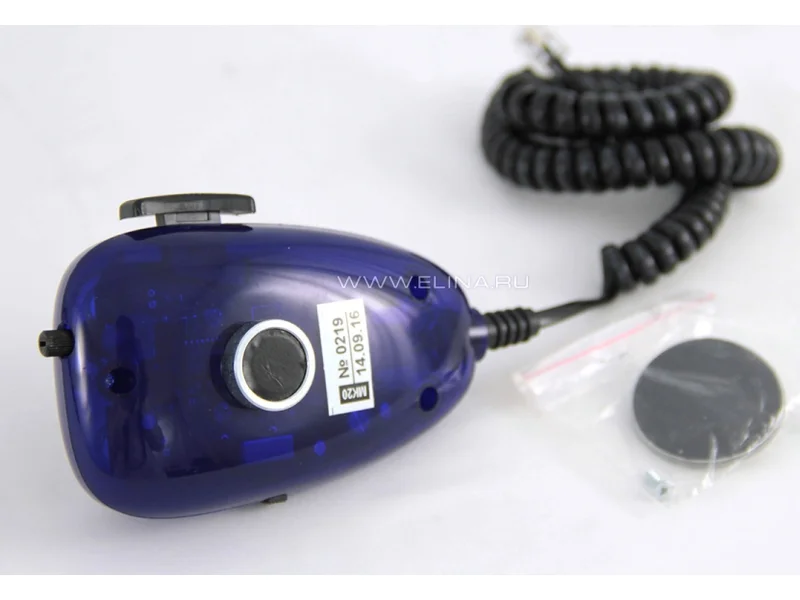

●Microphone — 1 pcs
●Button — 3 pcs
●Power cable — 1 pcs
●Cable with power switch — 1 pcs
●Remote button cable — 3 pcs
●Speaker cable — 1 pcs
●Speaker mounting kit — 1 pcs
●Power unit and microphone mounting kit — 1 pcs
●Speaker cover — 2 pcs
●User manual — 1 pcs
●Installation guide — 1 pcs
●Passport — 1 pcs
●Packaging — 1 pcs
